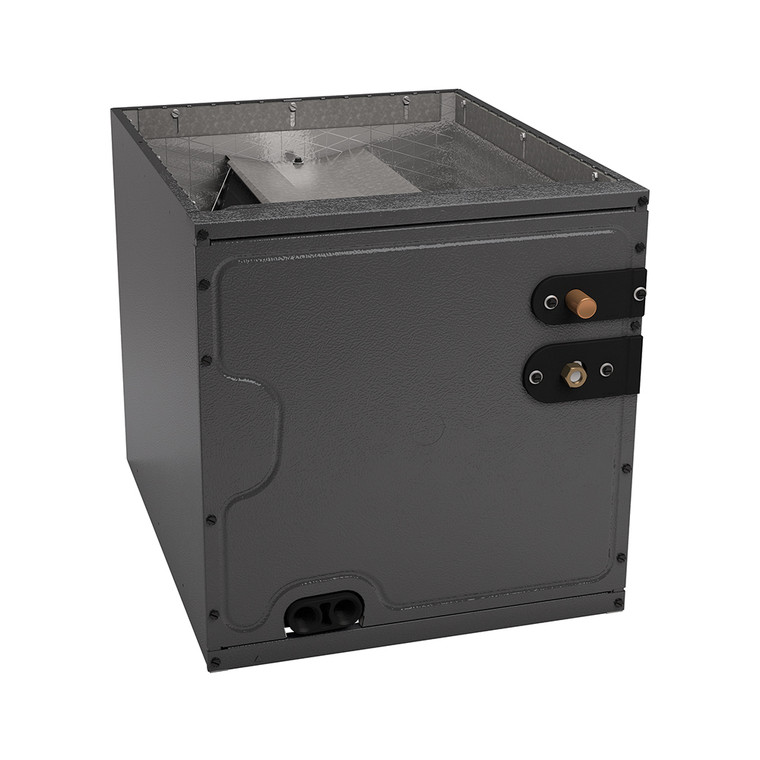

4 Ton CHPTA AlumaFin7™ Evaporator Coil, Horizontal, Ton, R-32

CHPTA4830C3

• BrandCorporate
• Product FamilyCHPTA_3
• Family DescriptionCHPTA AlumaFin7™ Evaporator Coil
• Unit TypeIndoor
• Product Class - (PIM)Coil
• Model Efficiency13.4 SEER2
• Product BenefitsFactory-installed thermal expansion valves for cooling and heat pump applications
• Product Features StandardAll-Aluminum evaporator coil
  Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
  R-32 sensor designed for the life span of the coil
  Factory-installed thermal expansion valves for cooling and heat pump applications
  Standardized copper suction tube stub length
  Check flowrator for cooling and heat pump applications
  Horizontal application
  21" depth for easier attic access
  Single front access panel
  Foil-faced insulation covers the internal casing to reduce cabinet condensation
  Galvanized, leather grain-embossed finish
  Rust resistant, thermoplastic drain pan featuring a low water-retention design
  DecaBDE-free thermoplastic drain pan with secondary drain connections
  Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  UV-resistant drain pan
  AHRI certified
  ETL Listed
• Cabinet FeaturesSingle front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
• Power Phase1 Ph
• Power Frequency60 Hz
• Dimensions - (Unit Depth)21 in
• Dimensions - (Unit Width)30 in
• Dimensions - (Unit Height)21 in
• Refrigerant TypeR-32
• Proposition 65 Label
• VendorDAIKIN COMFORT TECH
• Country of OriginUSA
• Pallet Qty4
• Pipe Size Gas7/8 in
• Pipe Size Liquid3/8 in
• Tonnage Range4
