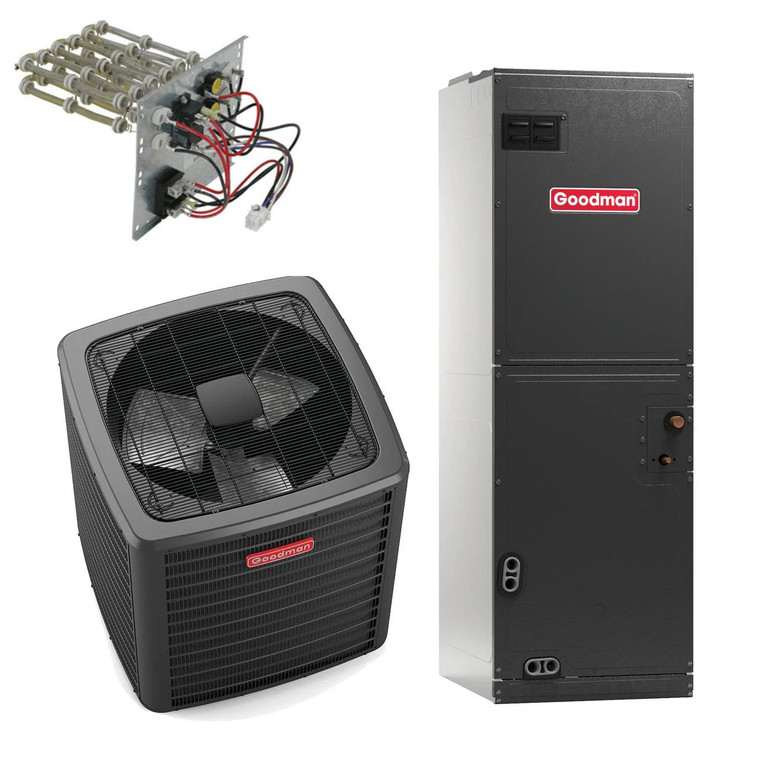

5 Ton Goodman Split Heat Pump 15.2 SEER2, Single Stage/Multi-Position, Multi-Speed, ECB-Based Air Handler with Internal TXV R-32
$6,888.00
(No reviews yet)
Write a Review
5 Ton Goodman Split Heat Pump 15.2 SEER2, Single Stage/Multi-Position, Multi-Speed, ECB-Based Air Handler with Internal TXV R-32
GLZS5BA6010
High-efficiency scroll compressor
Factory-installed filter drier
Fully charged for 15’ of tubing length
Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
Service valves with sweat connections and easy-to-access gauge ports
Enclosed contactor with lug connection
Ground lug connection
High-pressure switch
AHRI Certified
ETL Listed
- Equipment
- Goodman Split Heat Pump 15.2 SEER2, Two Stage, 5 Ton, Non-Communicating
- Outdoor
-
AMST60DU1300
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, 9-speed ECM blower motor
Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
All-aluminum evaporator coil with high-performance coated fin stock
Coil mounting track for quick repositioning
Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
3 kW – 25 kW electric heater kits
AHRI certified
ETL listed
All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Specification SheetService ManualParts ManualService Manual
Standard warranties apply. Standard parts, residential: ALL PARTS - 5 YEARS PARTS Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS Standard parts, commercial: ALL PARTS - 5 YEARS PARTS Registered parts, residential: ALL PARTS - 10 YEARS PARTS Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
