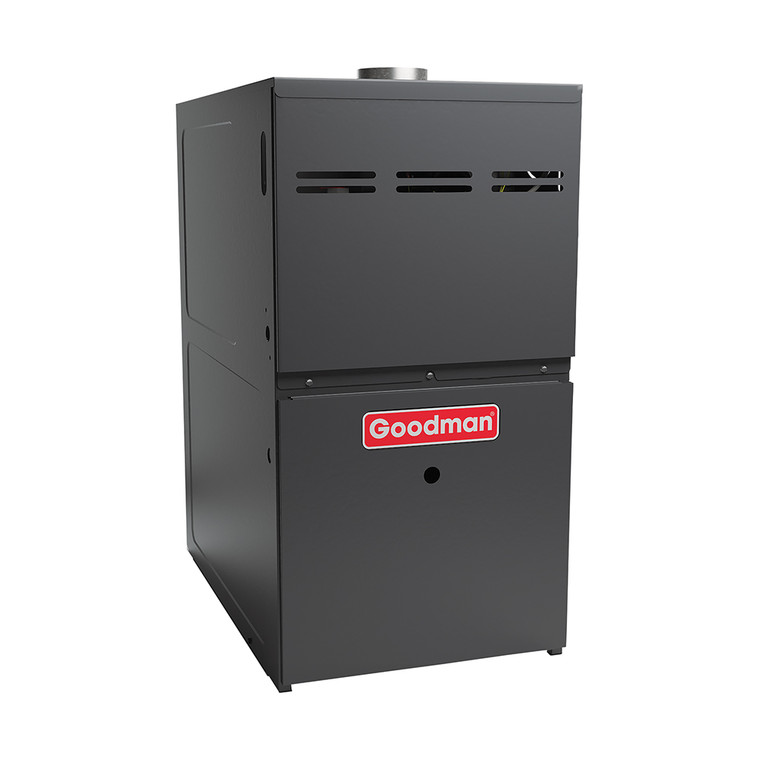

Goodman 80% AFUE Gas Furnace Multi-Speed, Single Stage 60,000 BTU

Goodman 80% AFUE Gas Furnace Multi-Speed, Single Stage 60,000 BTU

SKU:
GR9S800603BN
$1,191.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

  • GR9S800603BN

  •
  • BrandGoodman
  • Product FamilyGR9S80
  • Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE
  • Unit TypeIndoor
  • Product Class - (PIM)Gas Furnace
  • Tonnage3
  • Model Efficiency0.80
  • Product BenefitsHigh reliabilitynd quality
    Durablend long-igniter life
    Provisions for electronicir cleanernd humidifier
    Energy Efficientnd quiet circulation
    Self-diagnostic control board with constant memory
    Simple installationnd setup
    Quietnd simple operation
  • Product Features Standard1. Heavy-dutyluminized-steel tubular heat exchanger
    2. "Silicon Nitride igniter"
    3. Color-coded low-voltage terminals
    4. Multi-speed ECM blower motor with continuous fan speed
    5. Fault code LED Output
    6. Single-Stage gas Valve
    7. Single-speed inducer draft blower
  • NOx Burner TypeNon-NOx
  • AFUE80 %
  • Air Flow Rate (High) - Heating1260 ft³/min
  • High-Fire Input Capacity60000 Btu
  • High-Fire Output Capacity48000
  • Power Voltage115 V
  • Min. Circuit Amps8.7
  • Power Phase1 Ph
  • Power Frequency60 Hz
  • Dimensions - (Unit Depth)28 in
  • Dimensions - (Unit Width)17-1/2 in
  • Dimensions - (Unit Height)33-3/8 in
  • Weight - (Unit)100 lb
  • Motor Speed TypeMulti-Speed
  • Proposition 65 Labelchecked-specification
  • Cooling Capacity - (Nominal)36000 Btu/H
  • Pallet Qty4
  •

pdf-documentSpecification Sheetpdf-documentWarranty Certificatepdf-documentInstallation Manualpdf-documentInstallation Manualpdf-documentWarranty Certificatepdf-documentWarranty Certificatepdf-documentService Manualpdf-documentInstallation Manual

Warranty
Standard warranties apply. Standard parts, residential: ALL PARTS - 5 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS Registered parts, residential: ALL PARTS - 10 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,ALL PARTS - 10 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,ALL PARTS - 10 YEARS PARTS Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 10 YEARS PARTS Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS
