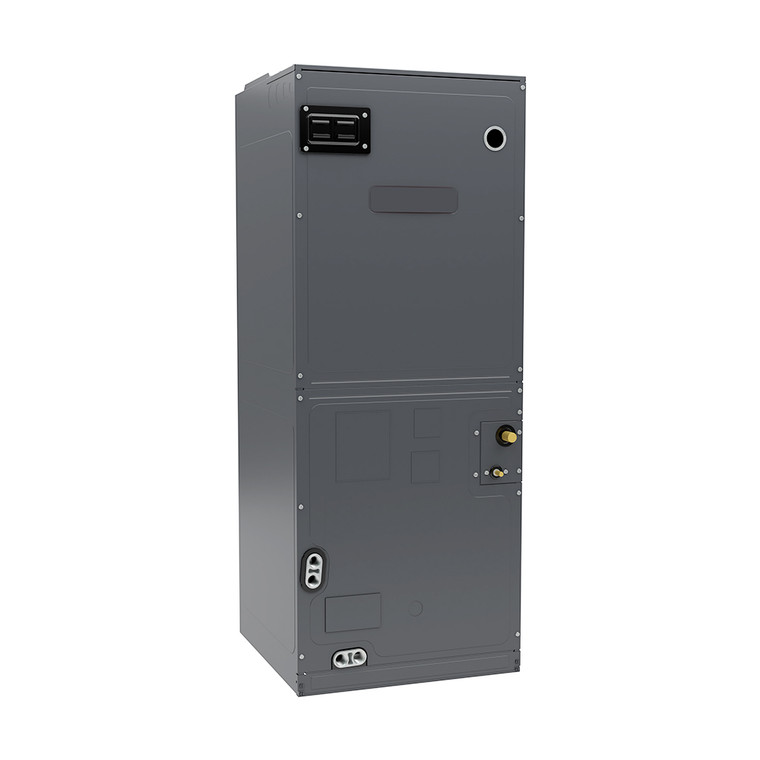

Goodman Multi-Position, Multi-Speed, ECB-Based Air Handler with Internal TXV R-32 4 Ton

AMST48CU1300

• Brand Corporate
• Product FamilyAMST_32
• Family Description Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
• Unit Type Indoor
• Product Class - (PIM)Air Handler
• Tonnage4
• Product Benefits All-Aluminum tube/aluminum fin coil
  Direct-drive, resilient-mount, 9-speed ECM motor
  Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
  High-efficiency evaporator coil
  Quiet operation
  Primary/secondary drain connection in a high-temperature plastic drain pan
  Suitable for free-return installation (non-ducted return air)
  Galvanized-steel construction
  Factory-installed pull-type disconnect
  Easy service access
  AHRI Certified
  ETL Listed
• Product Features Standard Internal factory-installed thermal expansion valves for cooling and heat pump applications
  Direct drive, 9-speed ECM blower motor
  Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  All-aluminum evaporator coil with high-performance coated fin stock
  Coil mounting track for quick repositioning
  Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
  Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  3 kW – 25 kW electric heater kits
  AHRI certified
  ETL listed
• Cabinet Features Rigid Smart Frame cabinet
  Horizontal or vertical configuration capabilities
  21” depth for easier attic access
  Deca BDE-free thermoplastic drain pan with secondary drain connections
  Screw-less sides and back helps to reduce condensation when installed in humid locations
  Foil-faced insulation covers the internal casing to reduce cabinet condensation
  Galvanized, leather grain-embossed finish
  Glue-less cabinet insulation retention
  Tool-less filter access
• Indoor Blower FLA5.7 A
• Max Voltage253 V
• Min. Voltage197 V
• Power Voltage208/240 V
• Min. Circuit Amps7.1
• Power Phase1 Ph
• Power Frequency60 Hz
• Dimensions - (Unit Depth)21 in
• Dimensions - (Unit Width)21-1/8 in
• Dimensions - (Unit Height)58 in
• Weight - (Unit)153 lb
• Refrigerant TypeR-32
• Motor Speed Type Multi-Speed
• Proposition 65 Label
• Vendor DAIKIN COMFORT TECH
• Cooling Capacity - (Nominal)48000 Btu/H
• Country of Origin USA
• Evap Motor RPM1345 r/min
• Pallet Qty4
• Pipe Size Gas3/4 in
• Pipe Size Liquid3/8 in
• Tonnage Range4
