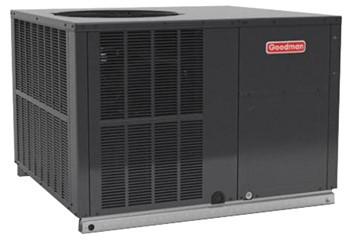

Goodman Packaged Air Conditioner 13.4 SEER2, Single Stage, Downflow/Horizontal, 2.5 Ton

Goodman Packaged Air Conditioner 13.4 SEER2, Single Stage, Downflow/Horizontal, 2.5 Ton

SKU:
GPCM33031
$4,300.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description
  • BrandGoodman
  • Product FamilyGPCM3_32
  • Unit TypeOutdoor
  • Product Class - (PIM)Packaged Air Conditioner
  • Tonnage2.5
  • Model Efficiency13.4 SEER2
  • Product BenefitsMeets the 2023 M1 Test Standards
  • Product Features StandardEnergy-efficient compressor
    Multi-speed ECM indoor blower motor
    Covertible airflow: horizontal or downflow application
    All-Aluminum evaporator coil
    Copper tube / aluminum fin condenser coil
    Eletric heat kit available as a field-installed option
    AHRI Certified
    UL listed
  • Cabinet FeaturesHeavy-gauge galvanized steel cabinet with attractive Architectural Gray powder-paint finish
    Aluminum foil-facing internal insulation reinforced with fiberglass scrim
    Fully insulated blower compartment with convenient access panels
    Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
    Louvered condenser coil protection
    One footprint for all tonnages
    When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
  • Compressor TypeScroll
  • Indoor Blower FLA3.8 A
  • Airflow Rate High Cooling1050 ft³/min
  • Air Flow Rate (High) - Heating1050 ft³/min
  • Compressor StagesSingle Stage
  • Cooling Capacity - (Rated)29400 Btu/H
  • Max Voltage253 V
  • Min. Voltage187 V
  • Power Voltage208/230 V
  • Min. Circuit Amps21.2
  • Power Phase1 Ph
  • Power Frequency60 Hz
  • Dimensions - (Unit Depth)51 in
  • Dimensions - (Unit Width)47 in
  • Dimensions - (Unit Height)34-3/4 in
  • Weight - (Unit)335 lb
  • Refrigerant TypeR-32
  • Motor Speed TypeMulti-Speed
  • Proposition 65 Labelchecked-specification
  • Compressor RLA12.8 A
  • Condenser Fan RPM1075 r/min
  • Cooling Capacity - (Nom  in
  • Pipe Size Liquid3/8 in
  • pdf-documentWarranty Certificatepdf-documentInstallation Manualpdf-documentInstallation Manualpdf-documentInstallation Manualpdf-documentInstallation Manualpdf-documentSpecification Sheetpdf-documentService Manualpdf-documentParts Manualpdf-documentService Manualpdf-documentSpecification Sheetpdf-documentInstallation Manual
Warranty
Standard warranties apply. Standard parts, residential: ALL PARTS - 5 YEARS PARTS Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS Standard parts, commercial: ALL PARTS - 5 YEARS PARTS Registered parts, residential: ALL PARTS - 10 YEARS PARTS Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
