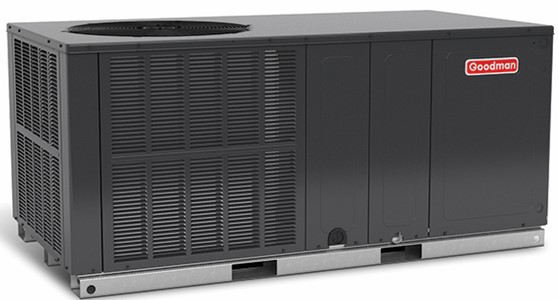

Goodman Packaged Air Conditioner 13.4 SEER2, Single Stage, Horizontal, 2.5 Ton R-32

GPCH33031

• Brand Goodman
• Product FamilyGPCH3_32
• Family Description Packaged Air Conditioner
• Unit Type Outdoor
• Product Class - (PIM)Packaged Air Conditioner
• Tonnage2.5
• Model Efficiency13.4 SEER2
• Product Benefits Meets the 2023 M1 Test Standards
• Product Features Standard Energy-efficient compressor
  Multi-speed ECM indoor blower motor
  Quiet horizontal discharge
  All-Aluminum evaporator coil
  Copper tube / aluminum fin condenser coil
  Compressor sound blanket
  Totally enclosed permanently lubricated condenser fan motor
  Fully charged system
  Electric heat kit available as a field-installed option
  AHRI Certified
  UL listed
• Cabinet Features Heavy-gauge galvanized steel cabinet with attractive Architectural Gray powder-paint finish
  Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  Fully insulated blower compartment with convenient access panels
  Louvered condenser coil protection
  One footprint for all tonnages
  When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
• Compressor Type Scroll
• Indoor Blower FLA3.8 A
• Airflow Rate High Cooling925 ft³/min
• Air Flow Rate (High) - Heating925 ft³/min
• Compressor Stages Single Stage
• Cooling Capacity - (Rated)27000 Btu/H
• Max Voltage253 V
• Min. Voltage187 V
• Power Voltage208/230 V
• Min. Circuit Amps20.8
• Power Phase1 Ph
• Power Frequency60 Hz
• Dimensions - (Unit Depth)34 in
• Dimensions - (Unit Width)66 in
• Dimensions - (Unit Height)30 in
• Weight - (Unit)320 lb
• Refrigerant TypeR-32
• Motor Speed Type Multi-Speed
• Proposition 65 Label
• Compressor RLA12.8 A
• Condenser Fan RPM810 r/min
• Cooling Capacity - (Nominal)27000 Btu/H
• Energy Source Electric
• ENERGY STAR Certified No
• Evap Motor RPM1050 r/min
• Pallet Qty1
• Pipe Size Gas1/2 in
• Pipe Size Liquid3/8 in
