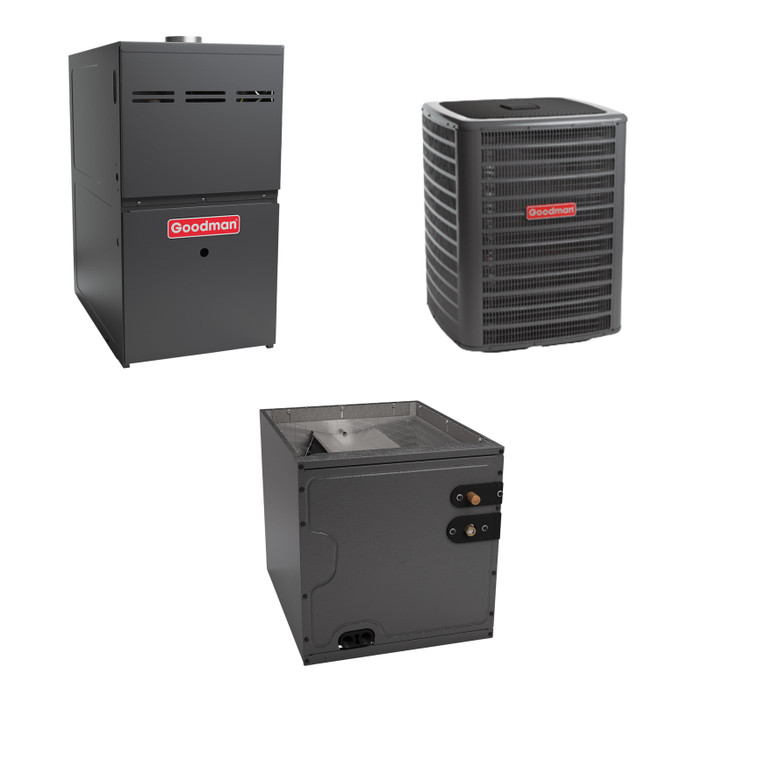

Goodman Split Air Conditioner 15.2 SEER2, Single Stage,CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, Goodman 80% AFUE Gas Furnace Multi-Speed, Single StageTon, R-32,

Goodman Split Air Conditioner 15.2 SEER2, Single Stage,CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, Goodman 80% AFUE Gas Furnace Multi-Speed, Single StageTon, R-32,

SKU:
GLXS5BA2410,CAPTA2422A3,GR9S800403AN
$4,700.00
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

GLXS5BA2410

High-efficiency scroll compressor
Factory-installed filter drier
Fully charged for 15’ of tubing length
Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
Service valves with sweat connectionsand easy-to-access gauge ports
Enclosed contactor with lug connection
Ground lug connection
High-pressure switch
AHRI Certified
ETL Listed

  • Equipment
  • Goodman Split Air Conditioner 15.2 SEER2, Single Stage, 2 Ton, Non-Communicating
  • Outdoor

CAPTA2422A3

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

  • Equipment
  • CAPTA AlumaFin7™ Cased Evaporator Coil, Upflow/Downflow, 2 Ton, 14 in Cabinet with TXV Expansion,R-32
  • Indoor
  • CAPTA AlumaFin7™ Evaporator Coil

GR9S800403AN

1. Heavy-dutyluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower
High reliabilitynd quality
Durablend long-igniter life
Provisions for electronicir cleanernd humidifier
Energy Efficientnd quiet circulation
Self-diagnostic control board with constant memory
Simple installationnd setup
Quietnd simple operation

  • Equipment
  • Goodman 80% AFUE Gas Furnace Multi-Speed, Single Stage, Upflow/Horizontal, 40,000 BTUH/H, Non-NOx
  • Indoor
  • Single-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE

pdf-documentWarranty Certificate (FR)pdf-documentInstallation Manualpdf-documentSpecification Sheet

pdf-documentWarranty Certificatepdf-documentInstallation Manualpdf-documentWarranty Certificate

pdf-documentWarranty Certificatepdf-documentSpecification Sheetpdf-documentInstallation Manua

Warranty
Standard warranties apply. Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS Registered parts, residential: ALL PARTS - 10 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,ALL PARTS - 10 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 10 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS,HEAT EXCHANGER - 79 YEARS PARTS,HEAT EXCHANGER - 20 YEARS PARTS Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 10 YEARS PARTS Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS,ALL PARTS - 5 YEARS PARTS
