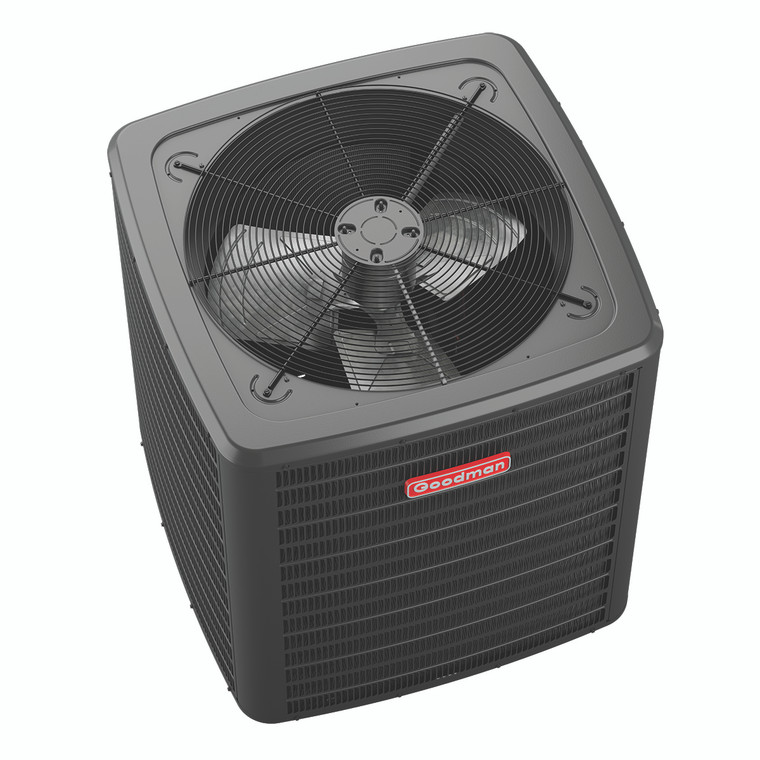

Goodman Split Heat Pump 14.3 SEER2, Single Stage 3.5 Ton R-32

GLZS4BA4210

• Brand Goodman
• Product FamilyGLZS4B
• Family Description Energy-Efficient Standard Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 5Tons
• Unit Type Outdoor
• Product Class - (PIM)Split Heat Pump
• Tonnage3.5
• Model Efficiency14.3 SEER2
• Product Benefits Meets the 2023 M1 Test Standards
• Product Features Standard High-Efficiency Compressor
  Smart Shift technology to ensure quiet reliable defrost
  Factory-installed bi-flow liquid line filter drier
  Factory-installed suction-line accumulator
  Factory-installed compressor crankcase heater
  Factory-installed high-capacity muffler
  Enhanced aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  Enhanced aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  High and low-pressure switches
  Fully charged for 15’ of tubing length
  Service valves with sweat connections and easy-to-access gauge ports
  Fully enclosed contactor with lug connection
  Ground lug connection
  Single-speed PSC condenser fan motor
  Capacitor with extended life
  AHRI Certified
  ETL Listed
• Cabinet Features Removable grille style top design compliant with UL 60335-2-40
  Steel louver coil guard
  Heavy-gauge galvanized-steel cabinet
  Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  Top and side maintenance access
  When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
• Compressor Type Scroll
• Compressor Stages Single Stage
• Cooling Capacity - (Rated)40500 Btu/H
• Heating Capacity - (Rated)39500 Btu/H
• Power Voltage208/230 V
• Min. Circuit Amps19.3
• Power Phase1 Ph
• Power Frequency60 Hz
• Dimensions - (Unit Depth)35.5 in
• Dimensions - (Unit Width)35-1/2 in
• Dimensions - (Unit Height)35.75 in
• Weight - (Unit)262 lb
• Refrigerant TypeR-32
• Motor Speed Type Single Speed
• Proposition 65 Label
• Country of Origin USA
• ENERGY STAR Certified No
• Pallet Qty1
• Pipe Size Gas3/4 in
• Pipe Size Liquid3/8 in
