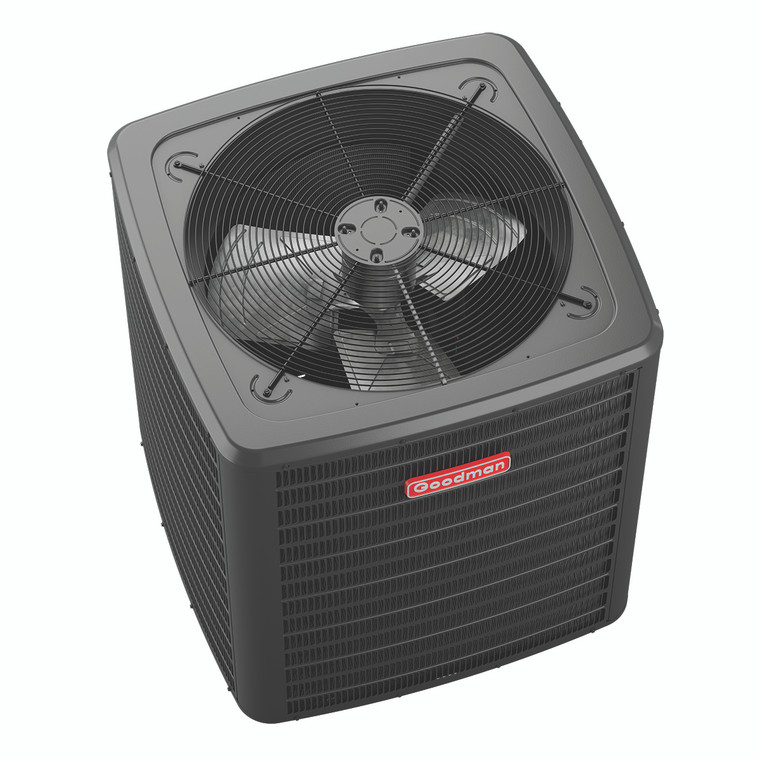

Goodman Split Heat Pump 15.2 SEER2, Single Stage 2 Ton R-32

Goodman Split Heat Pump 15.2 SEER2, Single Stage 2 Ton R-32

SKU:
GLZS5BA2410
$2,916.00
(No reviews yet)
Width:
29.00 (in)
Height:
39.50 (in)
Depth:
29.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

GLZS5BA2410



  • Brand Goodman
  • Product FamilyGLZS5B
  • Family Description High-Efficiency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2
  • Unit Type Outdoor
  • Product Class - (PIM)Split Heat Pump
  • Tonnage2
  • Model Efficiency15.2 SEER2
  • Product Benefits Meets the 2023 M1 Test Standards
  • Product Features Standard High-efficiency scroll compressor
    Smart Shift® technology to ensure quiet reliable defrost
    Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
    Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
    Single-speed PSC condenser fan motor
    Factory-installed suction-line accumulator
    Factory-installed compressor crankcase heater
    Factory-installed high-capacity muffler
    High- and low-pressure switches
    Service valves with sweat connections and easy access to gauge ports
    Fully charged for 15’ of tubing length
    Fully enclosed contactor
    Ground lug connection
    Capacitor with extended life
    AHRI Certified
    ETL Listed
  • Cabinet Features Removable grille style top design compliant with UL 60335-2-40
    Steel louver coil guard
    Heavy-gauge galvanized-steel cabinet
    Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
    Top and side maintenance access
    Single panel access to controls with space provided for field-installed accessories
    When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
  • Compressor Type Scroll
  • Compressor Stages Single Stage
  • Heating Capacity - (Rated)23000 Btu/H
  • Valve Size Suction (O.D.)3/4 in
  • Power Voltage208/230 V
  • Min. Circuit Amps15.2
  • Power Phase1 Ph
  • Power Frequency60 Hz
  • Dimensions - (Unit Depth)29 in
  • Dimensions - (Unit Width)29 in
  • Dimensions - (Unit Height)39.5 in
  • Weight - (Unit)171 lb
  • Refrigerant TypeR-32
  • Motor Speed Type Single Speed
  • Proposition 65 Labelchecked-specification
  • Country of Origin USA
  • ENERGY STAR Certified Yes
  • Pallet Qty2
  • Pipe Size Gas7/8 in
  • Pipe Size Liquid3/8 in
Warranty
Standard warranties apply. Standard parts, residential: ALL PARTS - 5 YEARS PARTS Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS Standard parts, commercial: ALL PARTS - 5 YEARS PARTS Registered parts, residential: ALL PARTS - 10 YEARS PARTS Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
